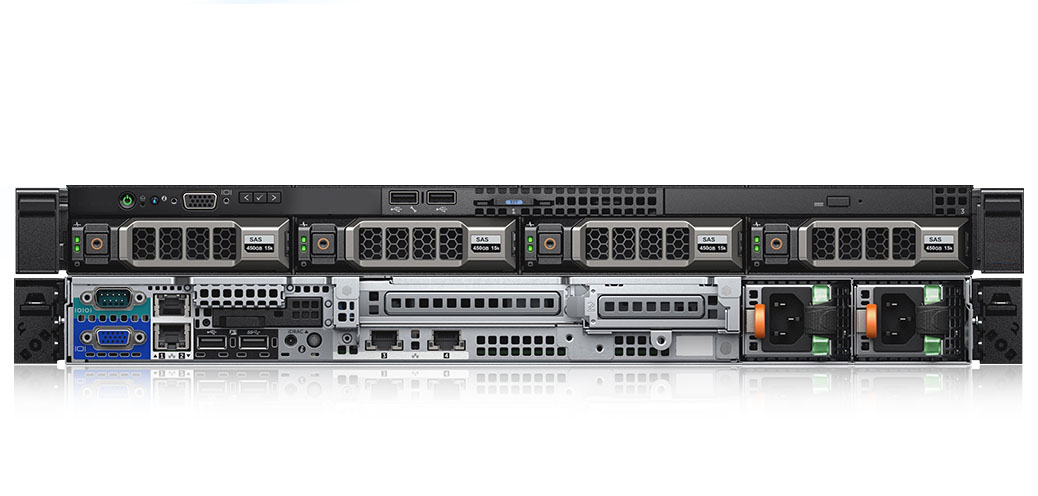

Plover Ultra Computer Server Series 2000

It is designed for IT innovation and business acceleration.

ULTRA EXTRA
SERVER COMPUTE
Single Intel Broadwell 2nd Generation Intel® Xeon® Scalable processors, up to 16 cores each N/A
Dual Intel Broadwell N/A Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
STORAGE CAPACITY
Hybrid 1x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 2x HDD: [2 TB, 4 TB, 6 TB or 8 TB] 1x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 2x HDD: [2 TB, 4 TB, 6 TB or 8 TB]
All Flash 3x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB, 1.92 TB or 3.84 TB] 3x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB, 1.92 TB or 3.84 TB]
Memory 64 GB, 96 GB, 128 GB or 256 GB 64 GB, 96 GB, 128 GB, 192 GB, 256 GB, 384 GB, 512 GB or 1 TB
Network Connections 2x 1GbE RJ45, and 1x 100 Mbps RJ45 (IPMI) 2x 1 GbE, 1x 1 GbE RJ45 (IPMI), Add-on: Dual-Port 1 GbE or Dual-Port 10 GbE or Quad-Port 10 GbE or Dual-Port 10 GBASE-T
CERTIFICATIONS
 CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS
Energy Star Certification
DIMENSIONS
Height 3.5’’ (88mm) 3.5’’ (88mm)
Width 17.25’’ (438mm) 17.25’’ (438mm)
Depth 30.5’’ (775mm) 32.75’’ (832mm)
WEIGHT
Stand-Alone 66.45 lbs. (30.1kg) 90 lbs. (40.8kg)

Package

 90.15 lbs. (40.9kg) 105 lbs. (47.6kg)
Node 5.25 lbs (2.4kg) 7 lbs (3.2kg)
System Cooling 4x80mm heavy duty fans with PWM fan speed controls 4x80mm heavy duty fans with PWM fan speed controls
OPERATING ENVIRONMENT
Op Temp Rng 50°-95°F (10°-35°C) 50°-95°F (10°-35°C)
Non-Op Temp Rng -40°-158°F (-40°- 70°C) -40°-158°F (-40°- 70°C)
Op Humidity Rng (Non-Condensing) 20-95% 20-95%
Non-Op Humidity Rng 5-95% 5-95%
Power Consumption 1160W maximum, 812W typical 1393W maximum, 907W typical
Power Supply (Dual Supply / Block) 1.1kW Out @100-120V, 12.7-10.5A, 50-60Hz; 2.0kW Out @200-240V, 10.0-9.8A, 50-60Hz; 80PLUS TITANIUM 1.1kW Out @100-120V, 12.7-10.5A, 50-60Hz; 2.0kW Out @200-240V, 10.0-9.8A, 50-60Hz; 80PLUS TITANIUM
Thermal Dissipation 3958 BTU/hr maximum, 2770 BTU/hr typical 4755 BTU/hr maximum, 3094 BTU/hr typical
OPERATING REQUIREMENTS
Input Voltage 100-240V AC auto-range 100-240V AC auto-range
Input Frequency 50-60Hz 50-60Hz



Plover Ultra Computer Server Series 3000

It is designed for IT innovation and business acceleration.

ULTRA EXTRA
SERVER COMPUTE
Dual Intel Broadwell 2nd Generation Intel® Xeon® Scalable processors, up to 22 cores each 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
STORAGE CAPACITY
Hybrid 2x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 4x HDD: [1 TB or 2 TB] 2x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB, 1.92 TB]; 4x HDD: [2 TB, 4 TB, 6 TB or 8 TB]
All Flash 6x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB, 1.92 TB or 3.84 TB] 6x SSD: [480 GB, 800 GB,960 GB, 1.2 TB, 1.6 TB, 1.92 TB, or 3.84 TB]
Memory 128 GB, 192 GB, 256 GB, 384 GB, 512 GB or 1 TB 128 GB, 192 GB, 256 GB, 384 GB, 512 GB, 640 GB, 768 GB, 1 TB, 1.5 TB
Network Connections 2x 1 GbE, 1x 1 GbE RJ45 (IPMI); Add-on: Dual-Port 10 GbE or Quad-Port 10 GbE or Dual-Port 10 GBASE-T 4x 1 GbE, 1x 1 GbE RJ45 (IPMI); Add-on NIC: 1x/2x/3x Dual-Port 10 GBASE-T, 1x/2x/3x Dual-Port 10G SFP+, 1x/2x/3x Quad-Port 10G SFP+
GPU N/A 2x M10 or 2x M60
CERTIFICATIONS
 CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS
Energy Star Certification N/A
DIMENSIONS
Height 3.5’’ (88mm) 3.47” (88.1mm)
Width 17.25’’ (438mm) 17.375” (441.4mm)
Depth 28.5’’ (724mm) 29.125” (739.8mm)
WEIGHT
Stand-Alone 90 lbs. (40.8kg) 60.63 lbs. (27.52kg)
Package 105 lbs. (47.6kg) 78 lbs.
Node 7 lbs (3.2kg) N/A
System Cooling 4x80mm heavy duty fans with PWM fan speed controls 4x80mm heavy duty fans with PWM fan speed controls
OPERATING ENVIRONMENT
Op Temp Rng 50°-95°F (10°-35°C) 50°-95°F (10°-35°C)
Non-Op Temp Rng -40°-158°F (-40°- 70°C) -40°-158°F (-40°- 70°C)
Op Humidity Rng (Non-Condensing) 20-95% 8-95%
Non-Op Humidity Rng 5-95% 5-95%
Power Consumption 1764W maximum, 1150W typical 1492W maximum power, 1350W typical
Power Supply (Dual Supply / Block) 1.1kW Out @100-120V, 12.7-10.5A, 50-60Hz; 2.0kW Out @200-240V, 10.0-9.8A, 50-60Hz; 80PLUS TITANIUM 1.0kW Out @100-127V, 13.0-9.0A, 50-60Hz; 1.6kW Out @200-240V, 10.0- 8.0A, 50-60Hz; 80PLUS TITANIUM
Thermal Dissipation 6019 BTU/hr maximum, 2924 BTU/hr typical 5092 BTU/hr maximum, 4607 BTU/hr typical
OPERATING REQUIREMENTS
Input Voltage 100-240V AC auto-range 100-240V AC auto-range
Input Frequency 50-60Hz 50-60Hz

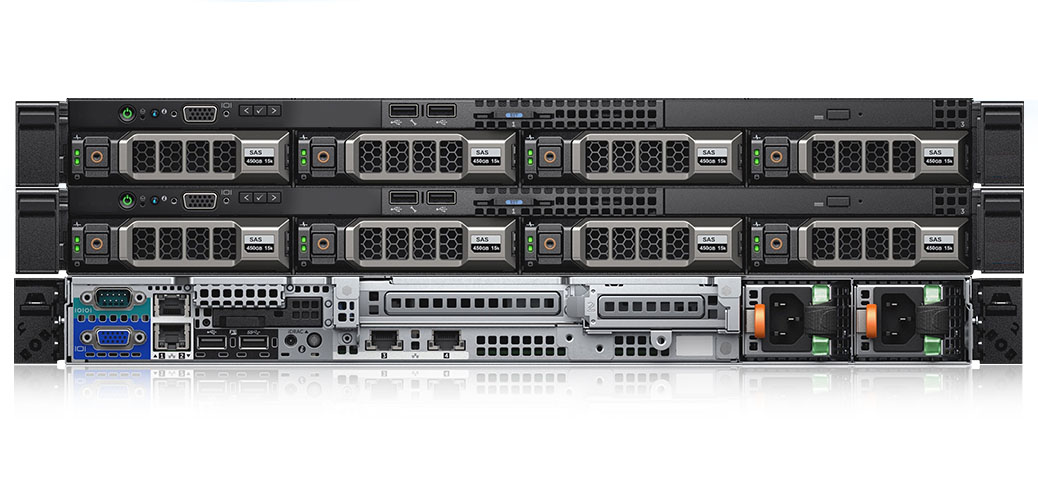

Plover Ultra Computer Server Series 6000

It is designed for IT innovation and business acceleration.

  ULTRA EXTRA
SERVER COMPUTE
Dual Intel Broadwell 2nd Generation Intel® Xeon® Scalable processors, up to 22 cores each 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
STORAGE CAPACITY
Hybrid 1x SSD: [800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 5x HDD: [4 TB, 6 TB or 8 TB] 1x SSD: [800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 5x HDD: [4 TB, 6 TB or 8 TB]
All Flash 6x SSD: [800 GB, 960 GB, 1.2 TB, 1.6 TB, 1.92 TB or 3.84 TB] N/A
Memory 64 GB, 128 GB, 192 GB, 256 GB, 384 GB, 512 GB or 1 TB 64 GB, 128 GB, 192 GB, 256 GB, 384 GB, 512 GB or 1 TB
Network Connections 2x 1 GbE, 1x 1 GbE RJ45 (IPMI); Add-on: Up to 2x Dual-Port 10 GbE or 2x Quad-Port 10 GbE or 2x Dual-Port 10 GBASE-T 2x 1 GbE, 1x 1 GbE RJ45 (IPMI); Add-on: Up to 2x Dual-Port 10 GbE or 2x Quad-Port 10 GbE or 2x Dual-Port 10 GBASE-T
CERTIFICATIONS
 CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS

Energy Star Certification
DIMENSIONS
Height 3.47’’ (88mm) 3.47’’ (88mm)
Width 17.25’’ (438mm) 17.25’’ (438mm)
Depth 30.25’’ (768mm) 30.25’’ (768mm)
WEIGHT
Stand-Alone 79 lbs. (35.83kg) 79 lbs. (35.83kg)
Package 94 lbs. (42.63kg) 94 lbs. (42.63kg)
Node 7.7 lbs (3.5kg) 7.7 lbs (3.5kg)
System Cooling 4x80mm heavy duty fans with PWM fan speed controls 4x80mm heavy duty fans with PWM fan speed controls
OPERATING ENVIRONMENT
Op Temp Rng 50°-95°F (10°-35°C) 50°-95°F (10°-35°C)
Non-Op Temp Rng -40°-158°F (-40°- 70°C) -40°-158°F (-40°- 70°C)
Op Humidity Rng (Non-Condensing) 20-90% 20-90%
Non-Op Humidity Rng 5-95% 5-95%
Power Consumption 812W maximum, 528W typical 832W maximum, 546W typical
Power Supply (Dual Supply / Block) 0.8kW Out @100-140V, 10-7A, 50-60Hz; 1.6kW Out @180-240V, 11-8A, 50-60Hz; 80PLUS TITANIUM 0.8kW Out @100-140V, 10-7A, 50-60Hz; 1.6kW Out @180-240V, 11-8A, 50-60Hz; 80PLUS TITANIUM
Thermal Dissipation 2771 BTU/hr maximum, 1802 BTU/hr typical 2839 BTU/hr maximum, 1863 BTU/hr typical
OPERATING REQUIREMENTS
Input Voltage 100-240V AC auto-range 100-240V AC auto-range
Input Frequency 50-60Hz 50-60Hz



Plover Ultra Computer Server Series 8000

It is designed for IT innovation and business acceleration.

  ULTRA EXTRA
SERVER COMPUTE
Dual Intel Broadwell 2nd Generation Intel® Xeon® Scalable processors, up to 22 cores each 2nd Generation Intel® Xeon® Scalable processors, up to 48 cores each
STORAGE CAPACITY
Hybrid 4x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 20x HDD: [1 TB or 2 TB] 2x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB]; 4x HDD: [4 TB, 6 TB or 8 TB]
All Flash 24x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB or 1.92 TB] 6x SSD: [480 GB, 800 GB, 960 GB, 1.2 TB, 1.6 TB, 1.92 TB or 3.84 TB]
Memory 128 GB, 192 GB, 256 GB, 384 GB, 512 GB, 640 GB, 768 GB, 1 TB or 1.5 TB 128 GB, 192 GB, 256 GB, 384 GB, 512 GB or 1 TB
Network Connections 2x 10GBASE-T, 1x 1GbE RJ45 (IPMI), Add-on: Up to 2x Dual-port 10GbE SFP+ or 2x Quad-port 10GbE SFP+ or 2x Dual-port 10GBASE-T or 2x Dual-port 40GbE QSFP+ 2x 1 GbE, 1x 1GbE RJ45 (IPMI); Add-on: Up to 2x Dual-port 10GbE or 2x Quad-port 10GbE or 2x Dual-port 10GBASE-T
CERTIFICATIONS
 CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO, S-MARK, UKRSEPRO, BIS
Energy Star Certification
DIMENSIONS
Height 3.5’’ (88mm) 3.47’’ (88mm)
Width 17.4’’ (441mm) 17.25’’ (438mm)
Depth 28.5’’ (724mm) 30.25’’ (768mm)
WEIGHT
Stand-Alone 47.5 lbs. (21.5kg) 79 lbs. (35.83kg)
Package 57.2 lbs. (25.9kg) 94 lbs. (42.63kg)
Node N/A 7.7 lbs (3.5kg)
System Cooling 4x80mm heavy duty fans with PWM fan speed controls 4x80mm heavy duty fans with PWM fan speed controls
OPERATING ENVIRONMENT

Op Temp Rng

 50°-95°F (10°-35°C) 50°-95°F (10°-35°C)
Non-Op Temp Rng -40°-150°F (-40°- 70°C) -40°-158°F (-40°- 70°C)
Op Humidity Rng (Non-Condensing) 8-95% 20-90%
Non-Op Humidity Rng 5-95% 5-95%
Power Consumption 650W maximum, 400W typical 949W maximum, 622W typical
Power Supply (Dual Supply / Block) 0.8kW Out @100-120V, 9.8-7A, 50-60Hz; 1.0kW Out @200-240V, 7-5A, 50-60Hz; 80PLUS TITANIUM 0.8kW Out @100-140V, 10-7A, 50-60Hz; 1.6kW Out @180-240V, 11-8A, 50-60Hz; 80PLUS TITANIUM
Thermal Dissipation 2217 BTU/hr maximum, 1364 BTU/hr typical 3238 BTU/hr maximum, 2123 BTU/hr typical
OPERATING REQUIREMENTS
Input Voltage 100-240V AC auto-range 100-240V AC auto-range
Input Frequency 50-60Hz 50-60Hz
